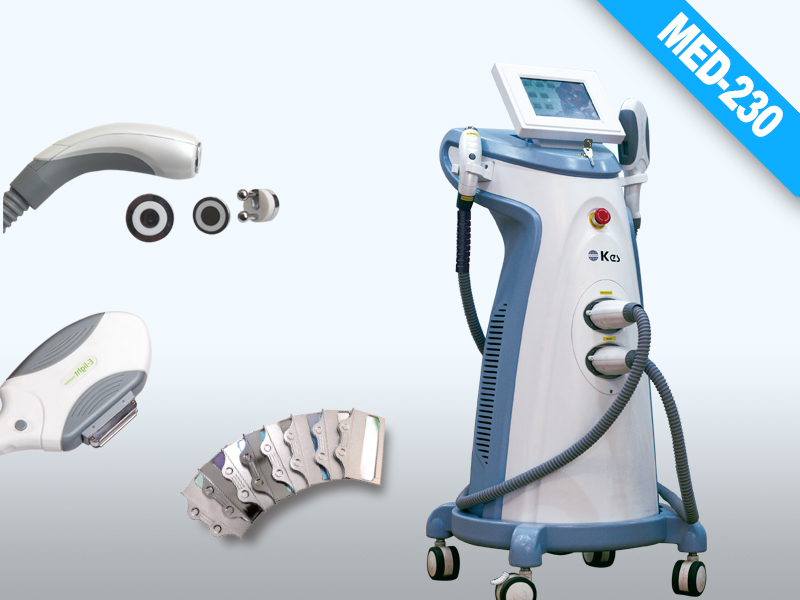

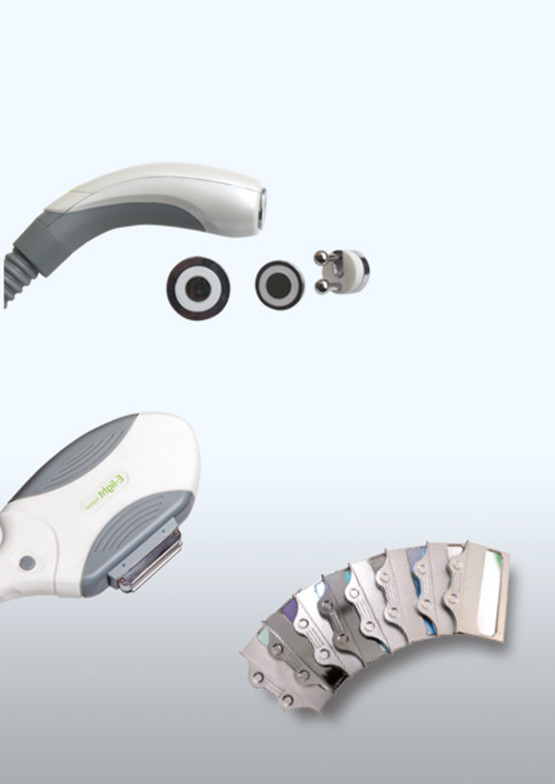

FDA Approved E-light IPL RF Double Handpieces with Monopolar
Model NO.:MED-230
Technical Specifications:
| Wavelength (Spectrum) | 430/530/640-1200nm (standard) 480/560/590/690/750-1200nm (optional) |
| Energy Density (Fluence) | 10-60J/cm2 |
| RF Energy | Up to 50W |
| Spot Size | 15x35mm² (IPL) + RF (1MHz, 3 tips) |
| Pulse Repetition Rate | 0.2Hz; 2Hz |
| Pulse Duration | 0.5-15ms |
| Pulse Delay | 1-50ms |
| Pulses | 1-15 pulses |
| IPL Peak Power | 2000W |
| RF Power | Max. 100W |
| Cooling | Continuous Crystal contact cooling (-4℃~2℃ ) + Air cooling + Closed water circulation cooling |
| Stand-by Working | Continuously for 18 hours |
| Display | 8.4" True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Net Weight | 46 kgs |
| Dimensions (WxDxH) | 54*50*118cm
|
Working Principle:
E-Light is the perfect combination of MED-IPL technology with Bi-polar Radio Frequency (RF) and Skin Contact Cooling.
Radio Frequency is independent of melanin and thus independent of skin type. With Radio Frequency, increased selectivity and deeper dermal penetration would be achieved, thus lower energy is applied during the IPL treatment. Uncomfortable feeling during the IPL treatment will be decreased significantly and better result can be expected. That is, less optical energy (IPL), when synergistically combined with Bi-polar RF, improves the safety factor when treating all skin types.
Meanwhile, contacting surface cooling technology applied on the treatment probe head can eliminate the heat effect attributed to optical energy, and increase the resistance of surface skin, reduce the RF absorption of the surface skin, greatly improving both the treatment performance and safety. The technology is equally applicable and effective to mild color target tissues.
Applications:
1) 750-1200nm: Hair Removal (Skin Type IV)
2) 690-1200nm: Hair Removal (Skin Type III)
3) 640-1200nm: Hair Removal (Skin Type I & II ) ; Wrinkle Removal
4) 590-1200nm: Pigmentation and Vascularity; Skin Rejuvenation
5) 560-1200nm: Vascular and Pigmented Lesions; Skin Rejuvenation
6) 530-1200nm: Skin Rejuvenation; Superficial Vascular Lesions
7) 510-1200nm: Superficial Vascular Lesions
8) 480-1200nm: Light Pigmentation
9) 430-1200nm: Acne
10) RF Treatment: Skin Tightening and Face Lifting
Before&After:
Advantages:
1) Certified by FDA 510K, all parts with EMC/LVD approved
2) Water-electric isolated, stable working
3) Humanized holder design
4) Monopolar and Bipolar RF for your option
FDA approval MED-230:
