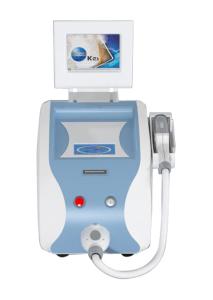

CE Approvaled E Light IPL Laser Hair Removal Machine Skin Care
Technology
Intense pulsed light (IPL) devices are non-laser high intensity light sources that make use of a high-output flashlamp to produce a broad wavelength output of noncoherent light, usually in the 500 to 1200nm range.
The working basis of the IPL rests on the principle of selective photothermolysis, in which thermally mediated radiation damage is confined to chosen epidermal and/or dermal pigmented targets at the cellular or tissue structural levels.3 Tissues surrounding these targeted structures, including overlying or immediately neighboring cells, are spared, potentially reducing nonspecific, widespread thermal injury. The three main chromophores (hemoglobin, water, and melanin) in human skin all have broad absorption peaks of light energy, allowing them to be targeted by a range as well as a specific wavelength of light. Therefore, monochromaticity of the light beam is not a prerequisite for selective heating of target structures in human skin. The broad wavelength range discharged from an IPL device leads to the simultaneous emission of green, yellow, red, and infrared wavelengths allowing the various chromophores to be targeted concurrently.

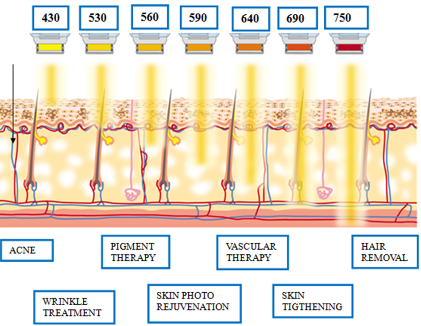

Applications
| 750-1200nm | Hair Removal (Skin Type IV) |
| 690-1200nm | Hair Removal (Skin Type III) |
| 640-1200nm | Hair Removal (Skin Type I & II ) ; Wrinkle Removal |
| 590-1200nm | Pigmentation and Vascularity; Skin Rejuvenation |
| 560-1200nm | Vascular and Pigmented Lesions; Skin Rejuvenation |
| 530-1200nm | Skin Rejuvenation; Superficial Vascular Lesions |
| 510-1200nm | Superficial Vascular Lesions |
| 480-1200nm | Light Pigmentation |
| 430-1200nm | Acne |
| RF Treatment | Skin Tightening and Face Lifting |
Contrast Photos (Before & After)
Unique Advantages
1. Attractive laptop design, beautiful and protective
2. Free for 10 logos
3. 16 local languages for optional
Technical Specifications
| Wavelength (Spectrum) | 640-1200nm(HR) |
| Energy Density (Fluence) | 10-60J/cm2 |
| Spot Size | 15x50mm2 (HR) |
| Pulse Repetition Rate | 0.2Hz; 2Hz |
| Pulse Duration | 0.5-15ms |
| Pulse Delay | 1-50ms |
| Pulses | 1-15 pulses |
| IPL Peak Power | 1400W |
| Cooling | Continuous Crystal contact cooling (-4°C~4°C ) + Air cooling + Closed water circulation cooling |
| Stand-by Working | Continuously for 12 hours |
| Display | 8.4" True Color LCD Touch Screen |
| Electrical Requirements | 100-240VAC, 20A max., 50/60Hz |
| Net Weight | 27 kgs |
| Dimensions (WxDxH) | 52*60*37cm |
Company Information:
Beijing KES Biology Technology Co., Ltd is one of global leading suppliers of suppliers of Diode Laser,IPL, Velashape, Nd-yag Q Switch Laser, CO2 Fractional Laser, Cryolipolysis solutions for the aesthetic and medical markets.
